OPERATING PRINCIPLE

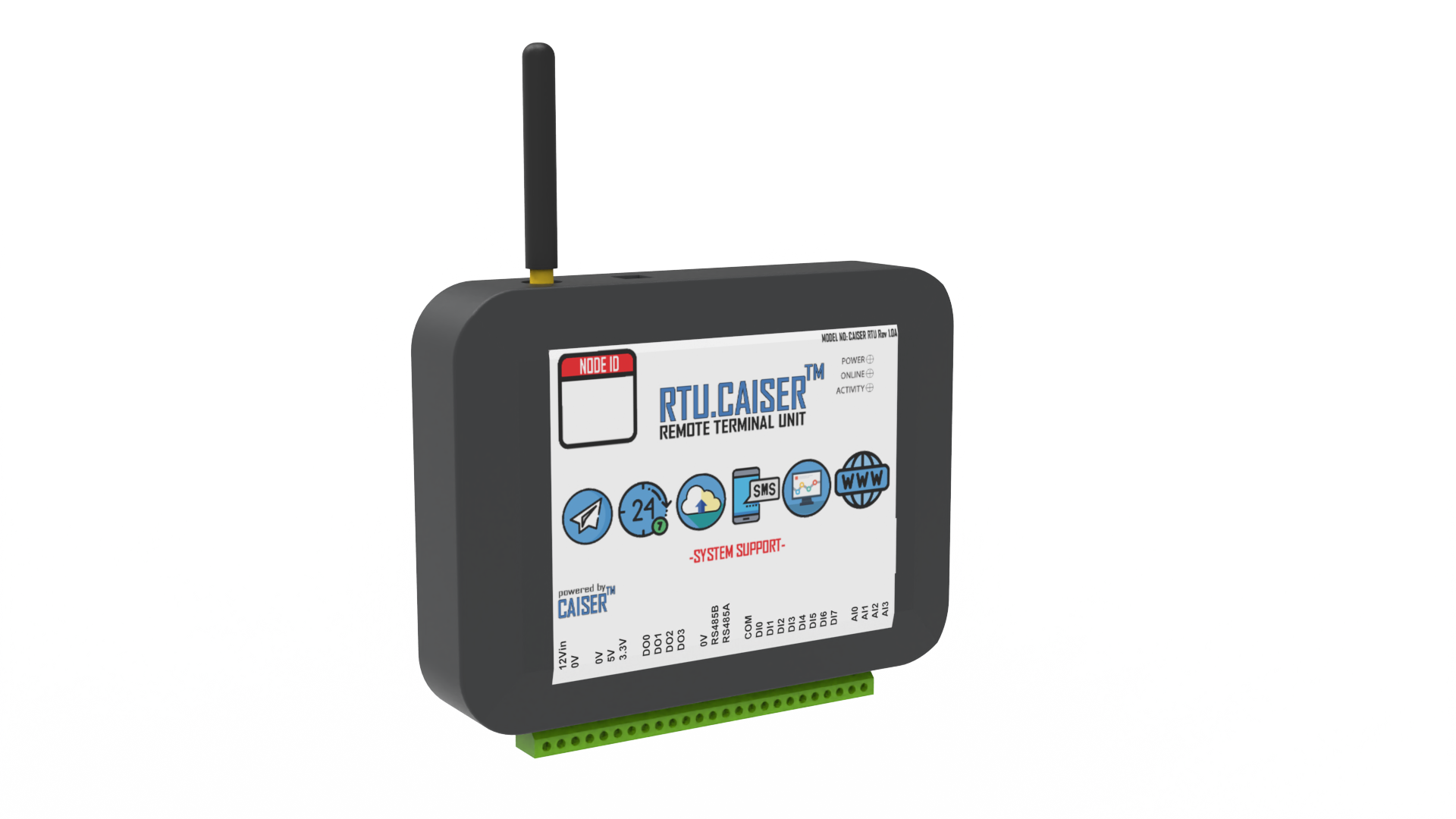

The custom-made CA-RTU supports Digital I/O, Analog I/O, Serial I/O, cloud-based data transfer. The CA-RTU is a scalable and user-friendly controller capable of automation, telemetry, and control application. It is designed to communicate using multiple types of communication adapters.
Features:
SPECIFICATIONS
Items |
Descriptions |
|
CONTROLLER |
32-bit Controller ARM Cortex M4 |
|
INPUT VOLTAGE |
12 VDC - 24 VDC |
|
OPERATING TEMPERATURE |
-20 0C to +75 0C |
|
REAL-TIME CLOCK |
Build-in RTC with NTP Sync |
|
PORT DIGITAL |
INPUT |
8 ports (Isolated) |
OUTPUT |
4 ports |
|
PORT ANALOG |
INPUT |
4 ports 4 -20mA (Isolated) |
1 port (0 - 24V) *Battery Voltage Monitoring |
||
OUTPUT |
2 ports (4 - 20 mA) |
|
COMMUNICATION |
RS-485 |
1 Port (Modbus RTU Master/Slave) |
RS-232 |
1 Port |
|
GSM |
GPRS/EDGE 850/900/1800/1900MHz |
We are providing wide range of solutions including all types of industries.
