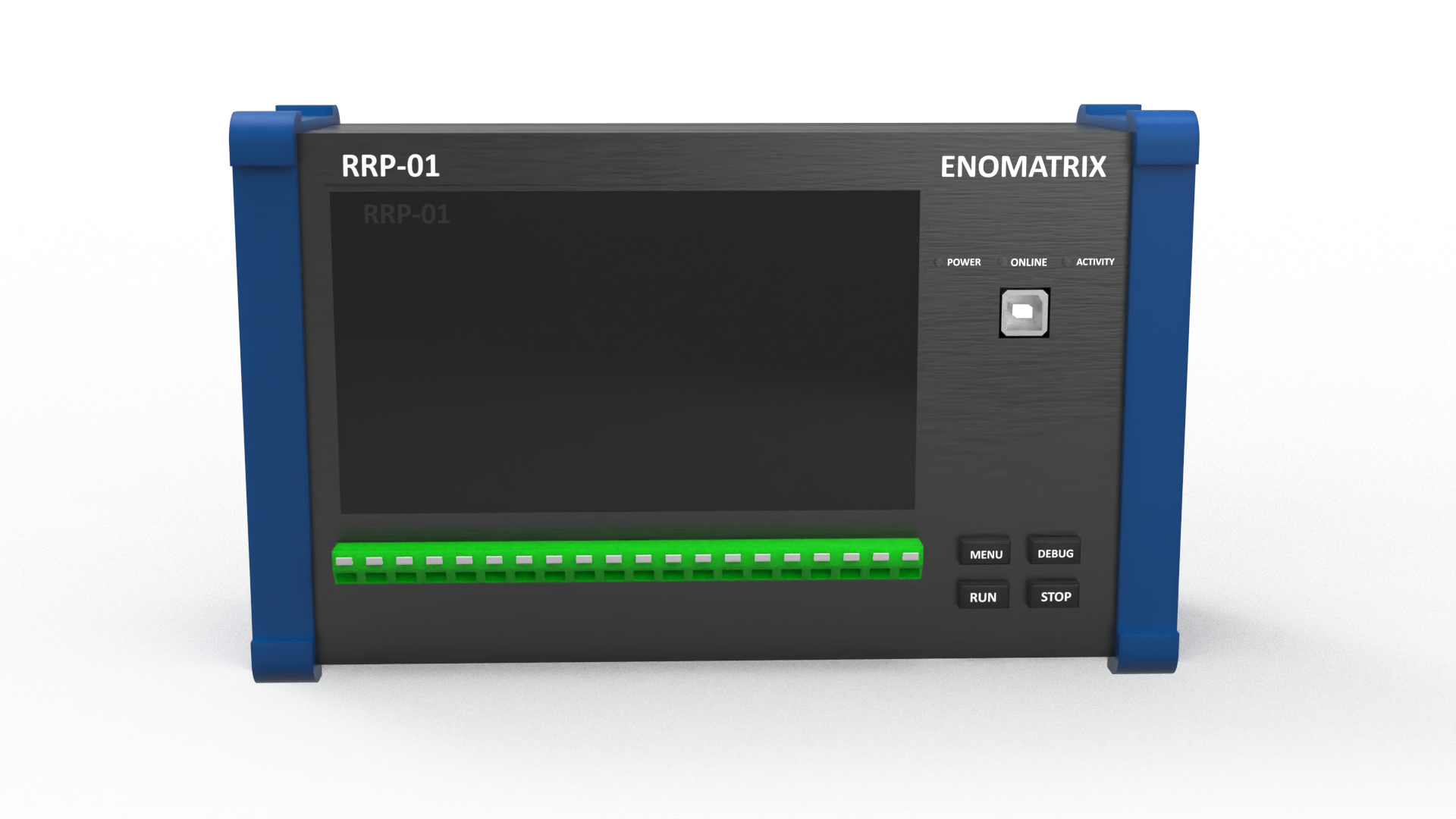

Data Logger [RRP-GLW-02]

Array

Product Info

The custom-made CASIER-Series Data Logger supports Digital I/O, Analog I/O, Serial I/O, cloud-based data transfer. The R-Series is a scalable and user-friendly controller capable of automation, telemetry, and control application. It is designed to communicate using multiple types of communication adapters.
Email

        OPERATING PRINCIPLE

The custom-made CASIER-Series Data Logger support Digital I/O, Analog I/O, Serial I/O, cloud-based data transfer. The R-Series is a scalable and user-friendly controller capable automation, telemetry, and control application. It is designed to communicate using multiple type of communication adapter.

Features:

  •           Build-in quad-band GSM/GPRS.
  •           Ethernet (10/100mbps) connectivity.
  •           Enclosure IP67 UV Protect (Plastic box or *Aluminum Casing).
  •           Low power consumption in its category.
  •           High reliability with well-designed enclosure.
  •          Management through web interface & serial terminal through USB.

      SPECIFICATIONS

MODEL

RRP-GLW-02

CONTROLLER

Quad-core Cortex-A72 (ARM v8)

64-bit SoC @ 1.5GHz

MAIN MEMORY

2/4/8 GB

POWER CONSUMPTION

Less than 10 Watt

INPUT VOLTAGE

12 VDC - 24 VDC

OPERATING TEMPERATURE

-20 0C to +75 0C

DATA STORAGE

microSD Card Up to 64 GB SDHC

REAL-TIME CLOCK

Build-in RTC with NTP Sync

PORT DIGITAL

INPUT

Standard 12 ports

OUTPUT

Standard 4 ports

PORT ANALOG

INPUT

4 ports, 4 -20mA (Isolated)

1 port (0 - 24V) *Battery Volt Monitoring

COMMUNICATION

USB

2 x USB 2.0 Interface (Type A & Type B)

RS-485

2 Ports (Support Modbus

RTU Master/Slave & TCP), Chain Link

RS-232

1 Port

SDI-12

1 Port

ETHERNET

1 Port (10/100Mbps) / TCP/IP,

SMS, FTP, HTTP, SSH, XML

GSM

GPRS/EDGE

850/900/1800/1900MHz

LTE CAT-M1, LTE CAT NB-IoT1

WIFI

2.4GHz and 5 GHz

 IEEE 802.11b/g/n/ac Wireless

MANAGEMENT

Serial Terminal (USB),

Logger Web Management,

with Secure Socket Layer (SSL)

INTERFACE

DISPLAY

5-inch LCD, Capacitive

BUTTON

4 push-button control + 1 reset button
